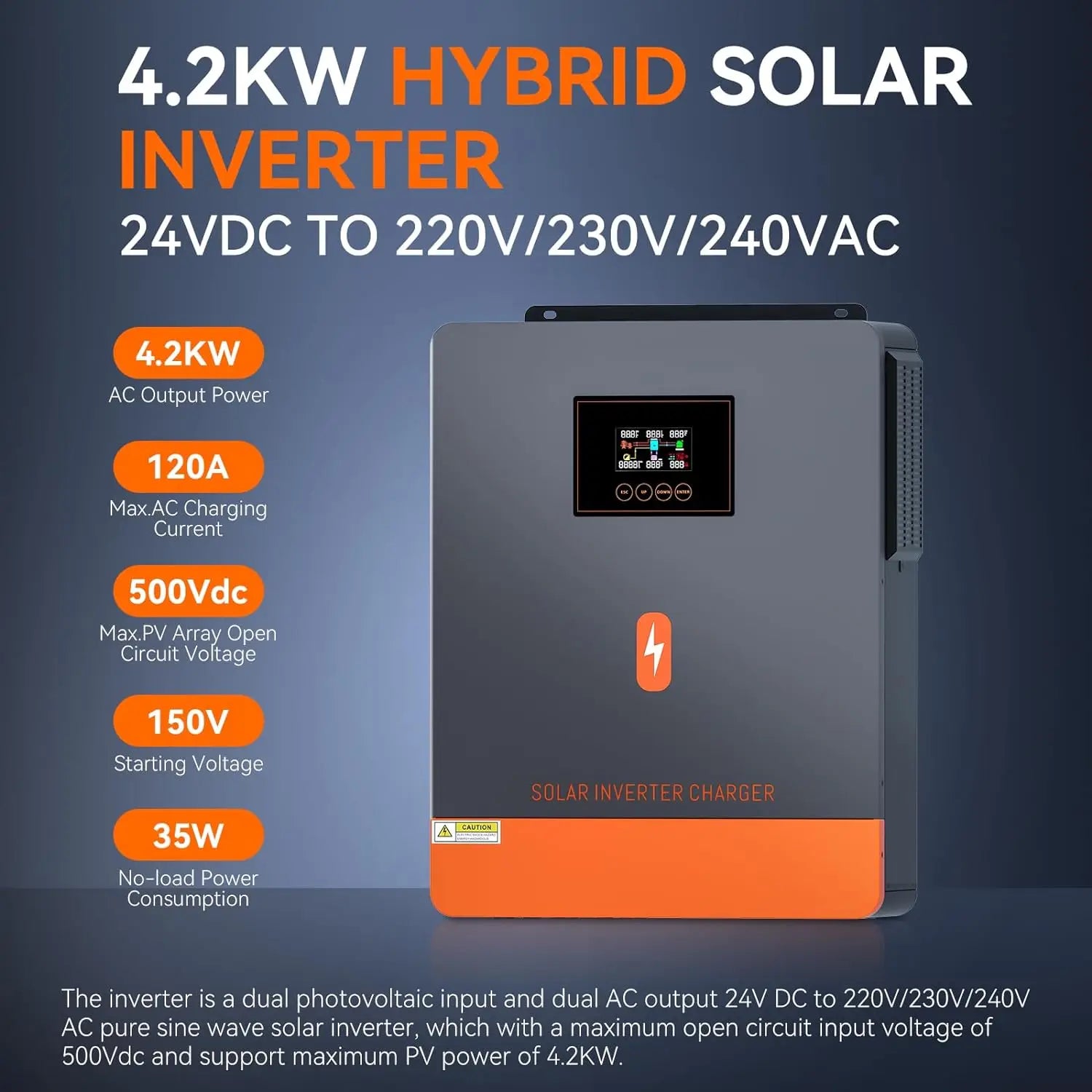

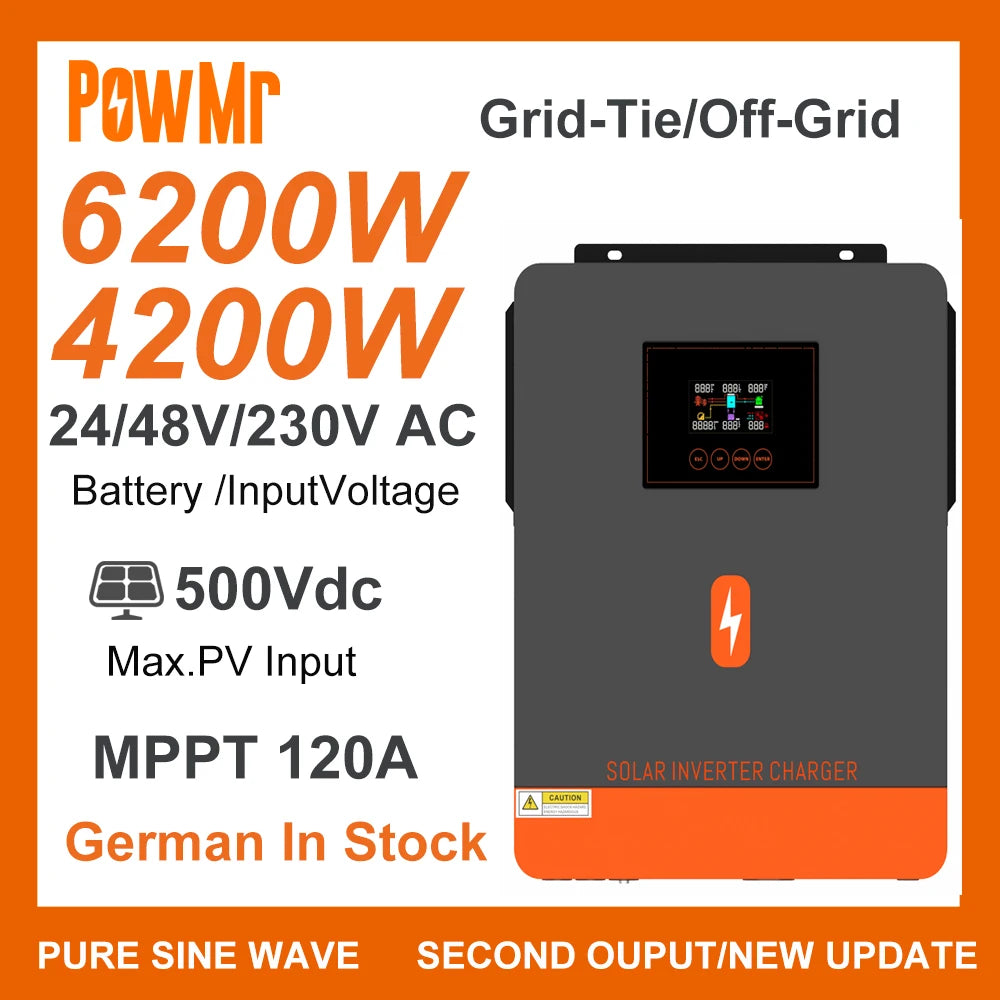

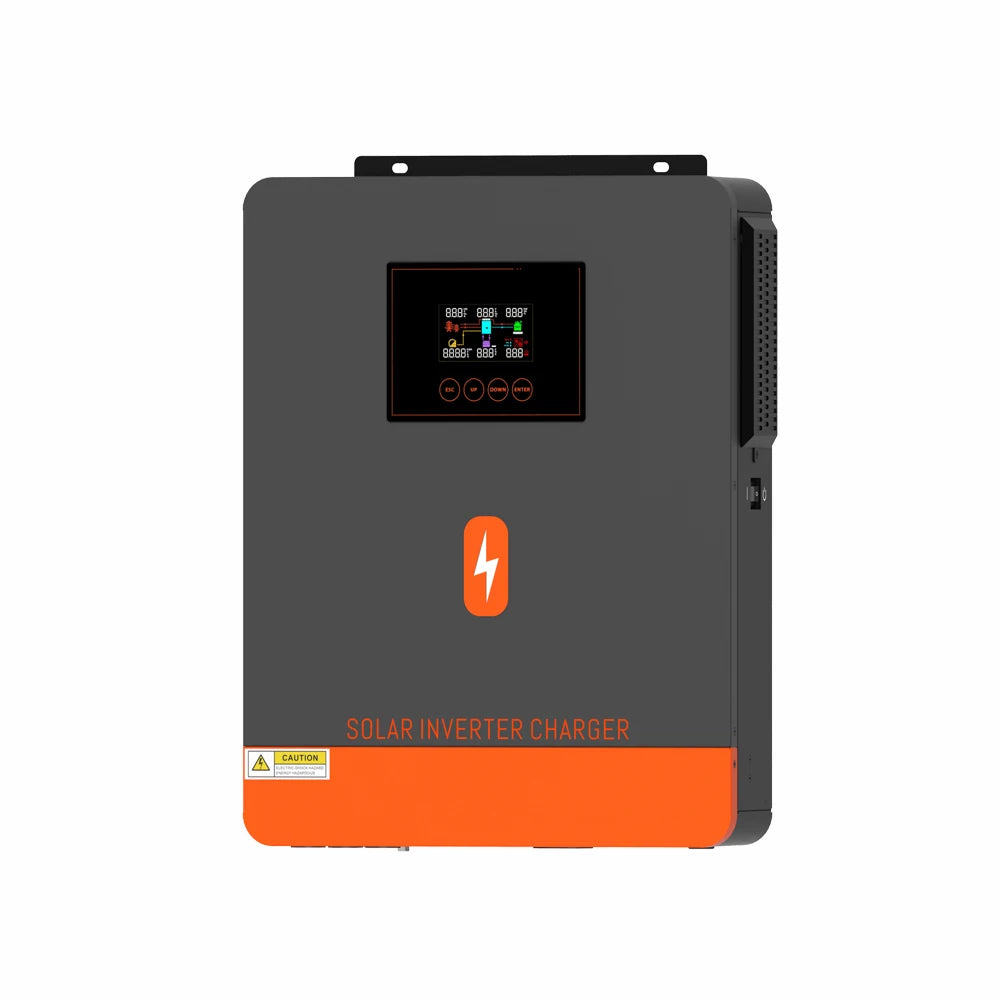

PowMr On-Grid Solar Inverter Pure Sine Wave MPPT 120A
PowMr On-Grid Solar Inverter Pure Sine Wave MPPT 120A
Couldn't load pickup availability
Experience reliable, on-grid solar power with a pure sine wave inverter and MPPT 120A charge control that keeps your home powered.
- Dual-model options: 4.2 kW or 6.2 kW full-load output with a pure sine wave and up to 93% peak efficiency; accepts 24V or 48V DC input.
- High-capacity MPPT charging: supports up to 6200W/6500W PV input with wide MPPT ranges (60–450V for 4.2 kW; 90–500V for 6.2 kW), maximizing sun harvest.

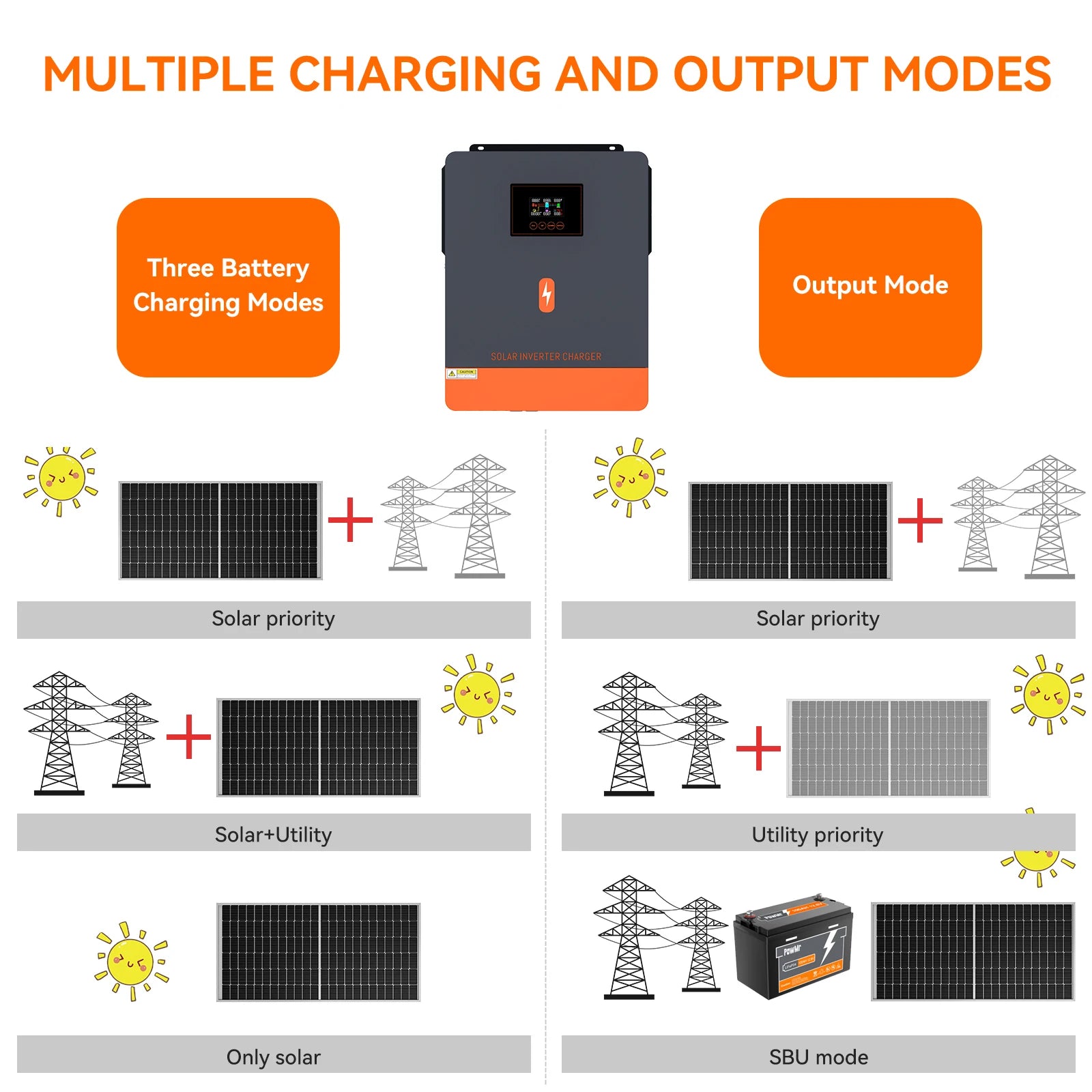

- LCD-driven configurability: set battery charging current, AC/solar priority, and acceptable input voltage; enjoy auto-restart after grid recovery.

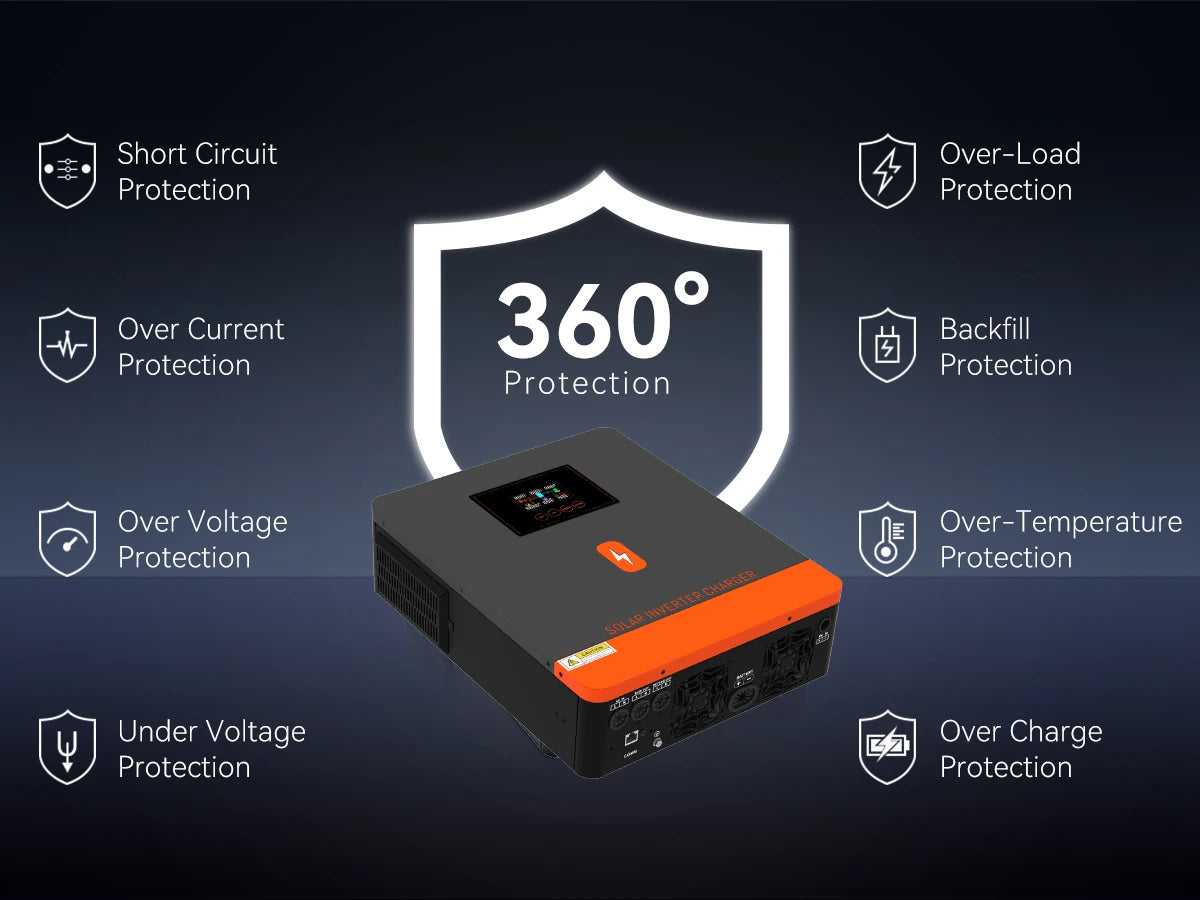

- Protection and flexibility: includes overload, over-temperature, and short-circuit protection; smart battery charger; cold start; supports lithium batteries; optional WiFi/GPRS.
INVERTER MODEL |
4.2KW |
6.2KW |
Output Voltage Waveform |
Pure Sine Wave |
|
Output Frequency |
50Hz |
|
Peak Efficiency |
93% |
|
Nominal DC Input Voltage |
24Vdc |
48Vdc |
Two Load Output Power | ||
Full Load |
4200W |
6200W |
Maximum Main Load |
4200W |
6200W |
Maximum Second Load(battery model) |
1400W |
2066W |
Main Load Cut off Voltage |
26VDC |
52VDC |
Main Load Return Voltage |
27VDC |
54VDC |
MPPT Solar Charging Mode | ||
Max. PV Array Power |
6200W |
6500W |
Nominal PV Voltage |
240Vdc |
360Vdc |
PV Array MPPT Voltage Range |
60-450Vdc |
90-500Vdc |
Max. PV Array Open Circuit Voltage |
500Vdc |
|
Max Charging Current |
120Amp |
|
Grid-Tie Operation | ||
Nominal Output Voltage |
220/230/240 VAC |
|
Feed-in Grid Voltage Range |
195~253VAC |
|
Nominal Output Current |
18.2A |
26.9A |
Power Factor Range |
>0.99 |
|
Maximum Conversion Efficiency |
97% |
|
General Specifications | ||
Safety Certification |
CE |
|
Operating Temperature Range |
-10°C to 50°C |
|
Storage temperature |
-15°C~ 60℃ |
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
